SharkBite

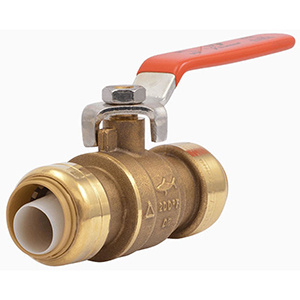

¾" Push to connect DZR Forged Brass Body Full Port Ball Valve

1479980 MFG #: 22185-0000LF
Sharkbite 3/4" Sharkbite Brass Full Port Ball Valve 1479980
  • Material: Brass
  • Valve Port Opening: Full
  • End Connection: Push-to-Connect x Push-to-Connect
  • Nominal Size: 3/4" x 3/4"
  • Specifications
  • Description
  • Documents
  • Actuation Type: Lever Handle
  • Nominal Size: 3/4 Inch x 3/4 Inch
  • End Connection: Push-to-Connect x Push-to-Connect
  • End to End Distance: 3.62 Inch
  • Ball Material: Chrome Plated Forged Brass
  • Body Material: DZR Forged Brass
  • Stem Material: Brass
  • Seal Material: PTFE Packing, EPDM O-Ring
  • Handle Material: Zinc Plated Steel
  • Port Type: Full
  • Temperature Rating: 200 Deg F
  • Pressure Rating: 200 PSI
  • Inclusions/Features: PTFE Seat Ring, Brass Body End Retainer/Packing Nut, Zinc Plated Steel Handle Nut, Stainless Steel Grab Ring, Veradel Tube Support Liner
  • Application: Potable Water, Hydronic Water Heating System
  • Applicable Standard: IGZ-157, NSF/ANSI 61/372, IAPMO/ANSI Z1157, ASSE 1061, ISO 6509
  • Additional Information: Lead-Free; Used with PEX/Copper/CPVC/PE-RT/HDPE Pipe
PUSH SharkBite's quality and performance is field-proven with more than 550 million connections. SharkBite owns the entire manufacturing process, from raw brass to finished product, making SharkBite the only push-to-connect brand that can ensure a clean, leak-free connection.
