Uponor

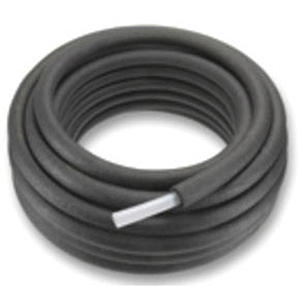

AquaPEX® 100' x ½" Plastic Tube with Insulation Coil

2167576 MFG #: F6150500
Uponor AquaPEX® 100' x ½" Plastic Tube with Insulation Coil 2167576
  • Material: Cross Linked Polyethylene
  • Length: 100' Coil
  • Nominal Size: 1/2"
  • Application: Aquasafe Fire Safety System, Hot and Cold Domestic Potable Water System, Hydronic Piping System, Radiant Heating and Cooling System, Residential Fire Safety and Hydronic Heating and Cooling System, PEX-a Plumbing System
  • Pressure Rating: 160 PSI at 73.4 Deg F
  • Color/Finish: White
  • Specifications
  • Description
  • Documents
  • Outside Diameter: 2.59 Inch
  • Length: 100 Foot Coil
  • End Connection: PEX
  • Material: Crosslinked Polyethylene
  • Material Specification: ASTM F876/F877/F1960/F2023
  • Process: Engel
  • Pressure Rating: 160 PSI at 73.4 Deg F
  • Color: White
  • Weight: 11 Pound
  • Application: PEX-a Plumbing System, Aquasafe Fire Safety System, Radiant Heating and Cooling System, Hydronic Piping System, Hot and Cold Domestic Potable Water System, Residential Fire Safety and Hydronic Heating and Cooling System
  • Applicable Standard: UL, CSA B137.5/B214, ANSI/NSF 14/61, ASTM E119/UL 263, CAN/ULC S101, ASTM E814/ULC S115, AWWA C904, ULC/ORD-C199P, ICC, IPC, IMC, IRC, UPC, UMC, NSPC, HUD, UFGS, NPC, NBC, PPI TR-4, ICC-ES, IAPMO, BMEC, CCMC, ASHRAE, NSF (Canada and US)
  • Additional Information: Type Pre-Insulated; Nominal Size 1/2 Inch; Coil Size 45 Inch Outer Diameter x 9 Inch Width; R-Value 7.5; Thermal Conductivity 0.25 BTU Inch/Square Foot Hour Deg F; Linear Expansion Rate 1.1 Inch/10 Deg F/100 Foot
Tubing; Outside Diameter 2.59 Inch; Length 100 Foot Coil; End Connection PEX; Material Crosslinked Polyethylene; Material Specification ASTM F876/F877/F1960/F2023; Process Engel; Pressure Rating 160 PSI at 73.4 Deg F; Color White; Weight 11 Pound; Application PEX-a Plumbing System, Aquasafe Fire Safety System, Radiant Heating and Cooling System, Hydronic Piping System, Hot and Cold Domestic Potable Water System, Residential Fire Safety and Hydronic Heating and Cooling System; Applicable Standard UL, CSA B137.5/B214, ANSI/NSF 14/61, ASTM E119/UL 263, CAN/ULC S101, ASTM E814/ULC S115, AWWA C904, ULC/ORD-C199P, ICC, IPC, IMC, IRC, UPC, UMC, NSPC, HUD, UFGS, NPC, NBC, PPI TR-4, ICC-ES, IAPMO, BMEC, CCMC, ASHRAE, NSF (Canada and US); Type Pre-Insulated; Nominal Size 1/2 Inch; Coil Size 45 Inch Outer Diameter x 9 Inch Width; R-Value 7.5; Thermal Conductivity 0.25 BTU Inch/Square Foot Hour Deg F; Linear Expansion Rate 1.1 Inch/10 Deg F/100 Foot
