  • 115/230 VAC 50/60 Hz, 9.6 To 4.8 A, 1.1 HP, 108 PSI, 22 GPM , Lead-free, Technopolymer, Electronic Pressurization System
DAB Pumps

115/230 VAC 50/60 Hz, 9.6 To 4.8 A, 1.1 HP, 108 PSI, 22 GPM , Lead-free, Technopolymer, Electronic Pressurization System

1962757 MFG #: 60188927

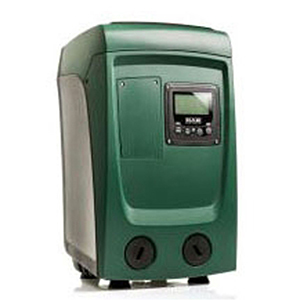

Dab Pumps Electronic Pressurization System 1962757
  • Flow Rate: 22 gpm
  • Horsepower: 1.1 hp
  • Amps: 4.8
  • Voltage Rating: 115/230V
  • Specifications
  • Description
  • Documents
  • Suction Size: 1 Inch
  • Overall Dimensions: 9.29 Inch Length x 10.35 Inch Width x 17.28 Inch Height
  • Flow Rate: 22 GPM
  • Discharge Head: 183 Foot
  • Casing Material: Technopolymer
  • Impeller Material: Noryl
  • Power Rating: 1.1 HP
  • Input Supply Rating: 115/230 Volt AC 50/60 Hertz 9.6 to 4.8 Amp
  • Temperature Rating: 122 Deg F (Ambient)
  • Pressure Rating: 108 PSI
  • Inclusions/Features: AISI 304 Stainless Steel Motor Sleeve, AISI 303 Stainless Steel Shutter Spring, Nitrile Rubber (NBR) O-Ring, Mechanical Seal Disc, Carbon Impregnated Resin/Silicon Carbide/NBR Mechanical Seal, Noryl Diffuser, Brass 1 Inch Insert, Technopolymer/Rubber/Steel Non-Return Valve, Brass Heat Sink, Pressure Sensor Body, Polyamide (PA) 1 Inch Plug
  • Application: Domestic, Gardening
  • Applicable Standard: CSA C22.2, UL 778, NSF/ANSI 61/372
  • Additional Information: Liquid Temperature Range 32 to 95 Deg F (Domestic), 32 to 104 Deg F (Other); Maximum Suction Depth 26 Foot; Settable Pressure 79 PSI; Motor Protection Rating IPX4; Insulation Class F; Installation Horizontal or Vertical Fixed Position
Electronic Pressurization System; Suction Size 1 Inch; Overall Dimensions 9.29 Inch Length x 10.35 Inch Width x 17.28 Inch Height; Flow Rate 22 GPM; Discharge Head 183 Foot; Casing Material Technopolymer; Impeller Material Noryl; Power Rating 1.1 HP; Input Supply Rating 115/230 Volt AC 50/60 Hertz 9.6 to 4.8 Amp; Temperature Rating 122 Deg F (Ambient); Pressure Rating 108 PSI; Inclusions/Features AISI 304 Stainless Steel Motor Sleeve, AISI 303 Stainless Steel Shutter Spring, Nitrile Rubber (NBR) O-Ring, Mechanical Seal Disc, Carbon Impregnated Resin/Silicon Carbide/NBR Mechanical Seal, Noryl Diffuser, Brass 1 Inch Insert, Technopolymer/Rubber/Steel Non-Return Valve, Brass Heat Sink, Pressure Sensor Body, Polyamide (PA) 1 Inch Plug; Application Domestic, Gardening; Applicable Standard CSA C22.2, UL 778, NSF/ANSI 61/372; Liquid Temperature Range 32 to 95 Deg F (Domestic), 32 to 104 Deg F (Other); Maximum Suction Depth 26 Foot; Settable Pressure 79 PSI; Motor Protection Rating IPX4; Insulation Class F; Installation Horizontal or Vertical Fixed Position
